Essential · 4K Android 12 STB
Compact power for everyday IPTV and OTT.
A practical Android 12 set-top box for operator deployments that need reliable 4K playback, proven connectivity and Alcatraz™ DMS control without flagship memory overhead.
Compare with TV6 Ultra
- 4K @ 60 Hz
- HDR · H.265
- Android 12
- AOSP, app-ready
- 2 GB / 16 GB
- DDR3 + eMMC
- IR Remote
- Simple control

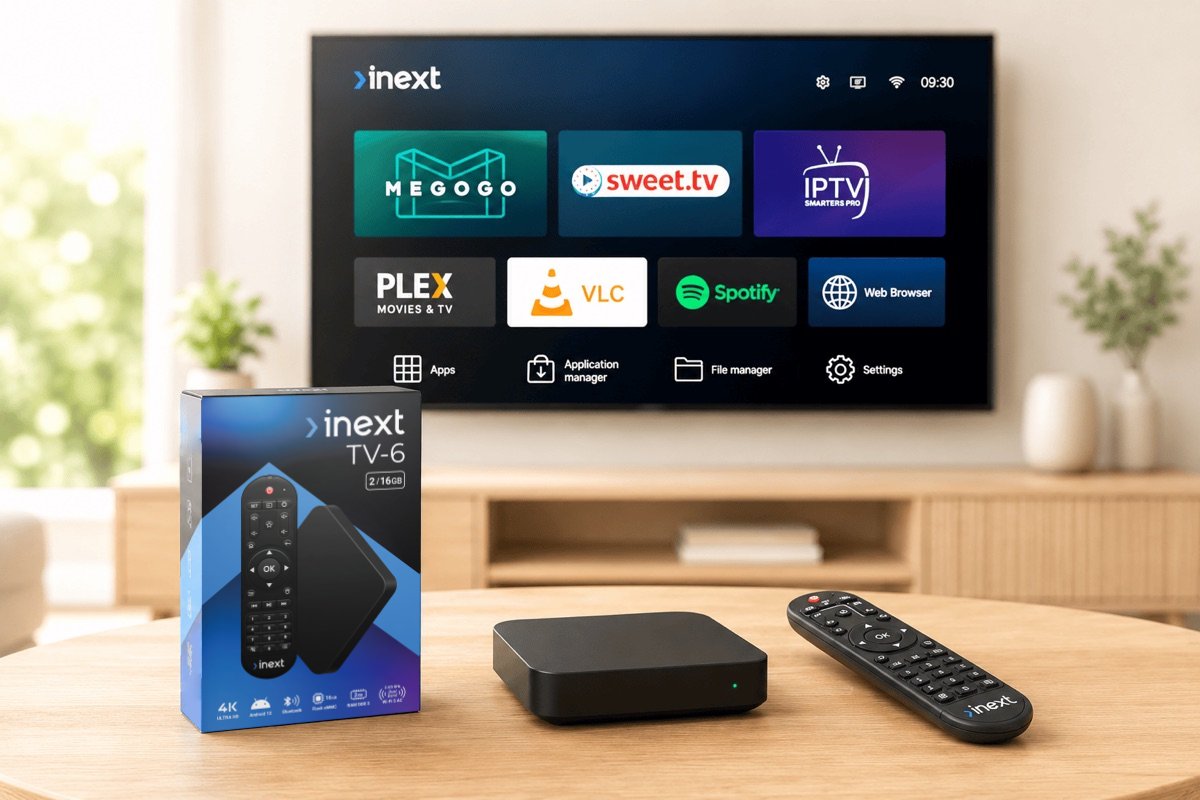

inext TV6
TV6 brings the same operator-first inext approach into a compact, cost-effective device: 4K video support, Android 12 AOSP, practical home connectivity and remote fleet management.
It is designed for deployments where predictable subscriber experience, easy provisioning and long-term support matter more than oversized specifications.
Software
Android 12 with room to grow.
Open Android 12 (AOSP) with Bluetooth, dual-band Wi-Fi and an operator-ready launcher — a flexible base for branded apps, OTT services and casual gaming.

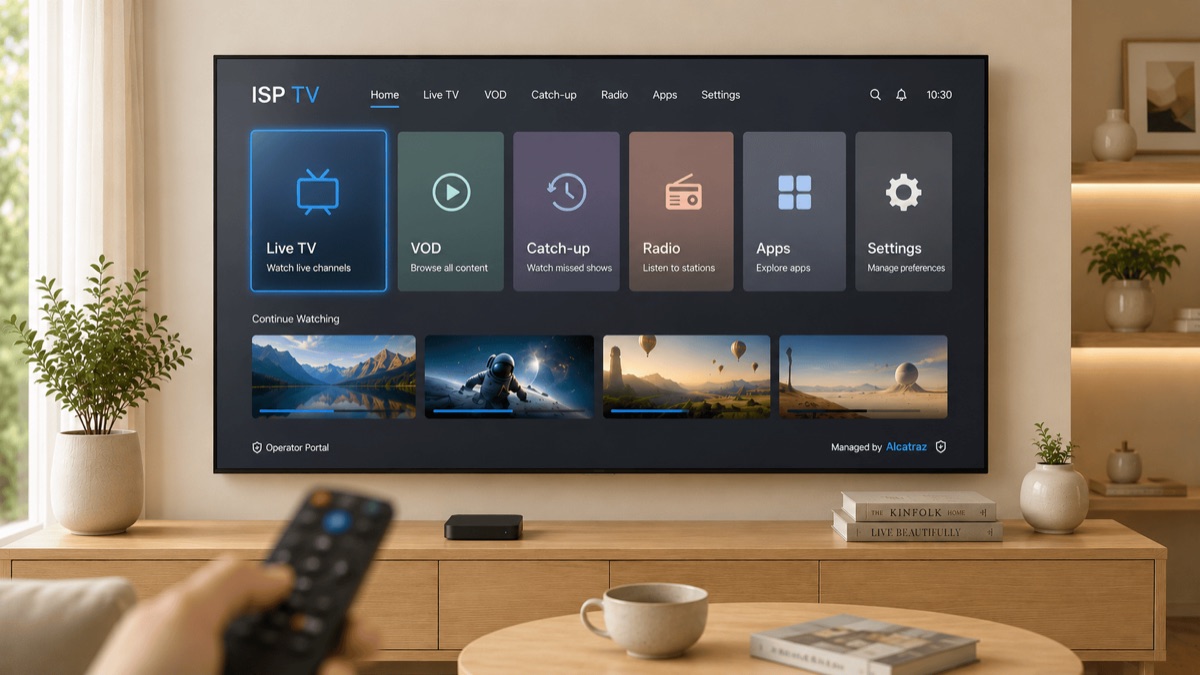

Operator launcher
Shape the home screen around Live TV, VOD, catch-up, radio, apps, settings and your preferred subscriber flows.
Brand and market fit
Adapt logos, colors, language, default sections and preloaded services for each operator or regional deployment.
Remote fleet control
Use Alcatraz™ DMS and TR-069 to provision devices, push updates, manage settings and keep support work off the subscriber’s screen.

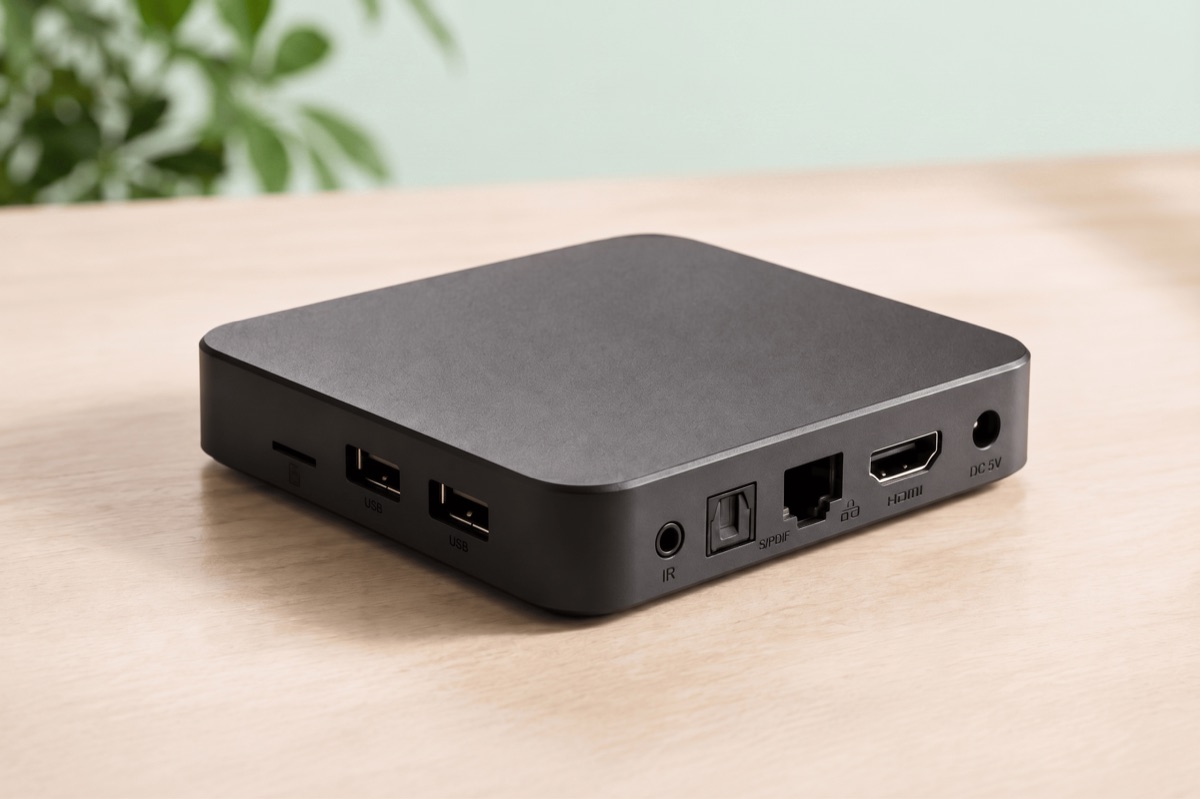

Connectivity
Wired, Wi-Fi and Bluetooth ready.
- HDMI 2.0a
- 100 Mb Ethernet
- 2× USB 2.0
- microSD
- S/PDIF optical
- dedicated IR extender or AV port, depending on the TV6 variant
- dual-band Wi-Fi 2.4/5 GHz
- Bluetooth 5.0

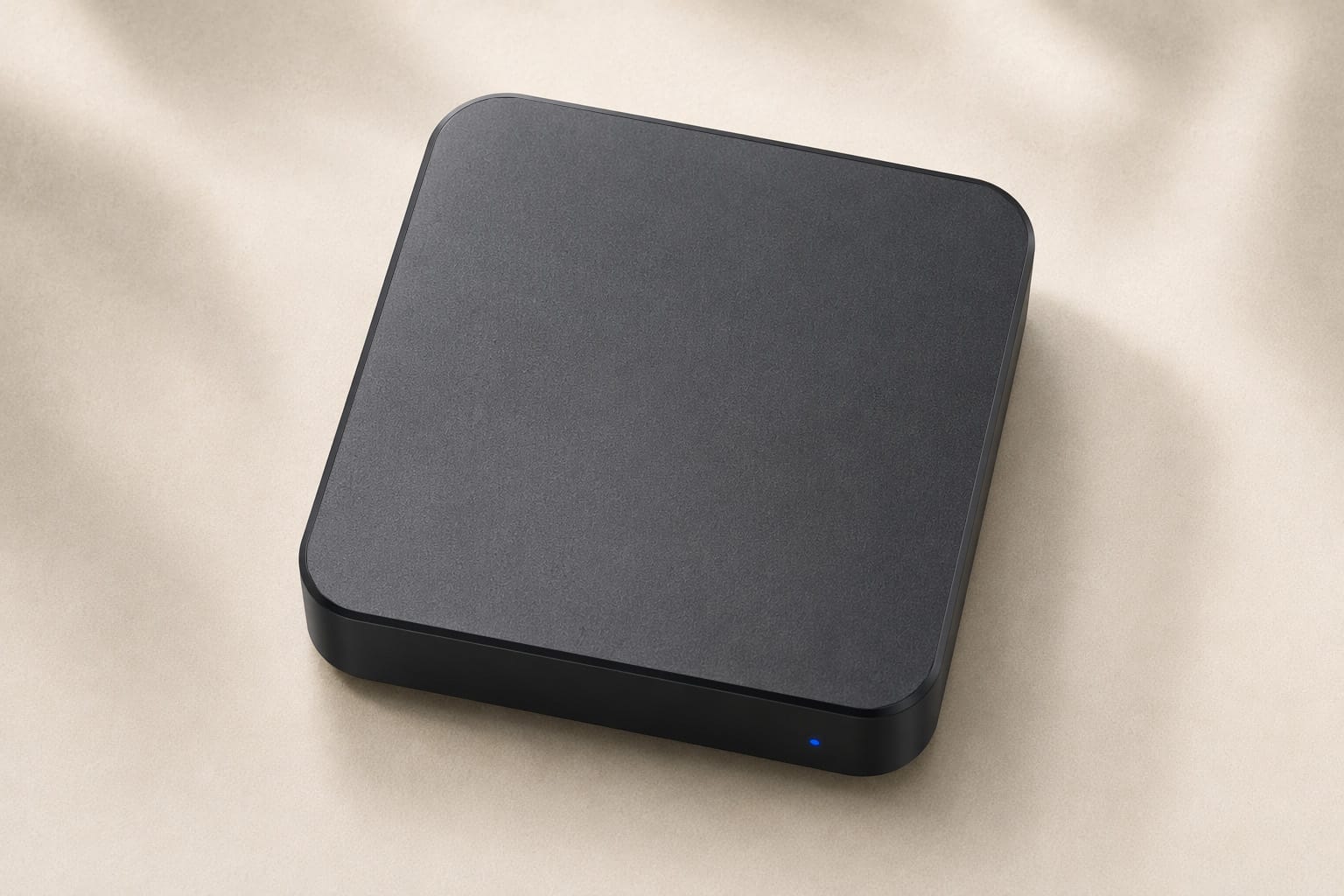

Performance
Smooth 4K without the flagship price.

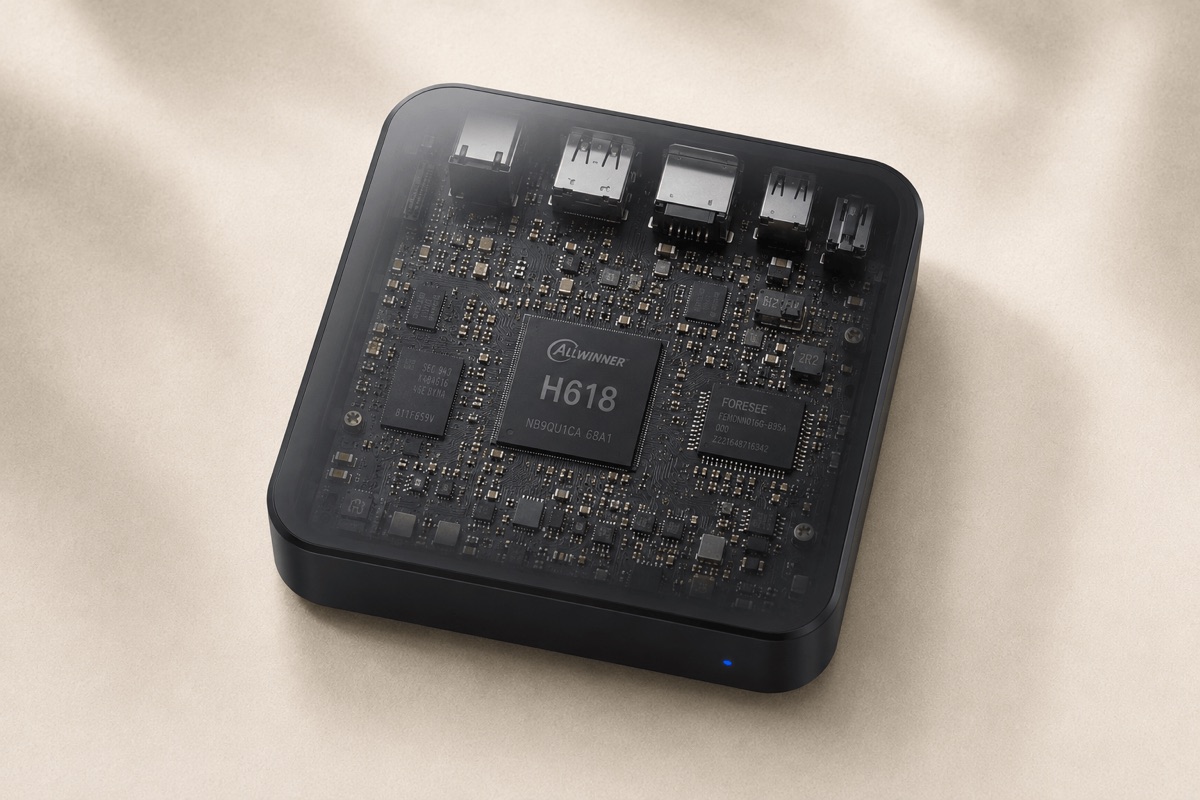

The quad-core Allwinner H618 with Mali-G31 MP2 decodes H.265, VP9 Profile 2 and H.264 in hardware — dependable 4K playback for mainstream IPTV and OTT line-ups.
Remote

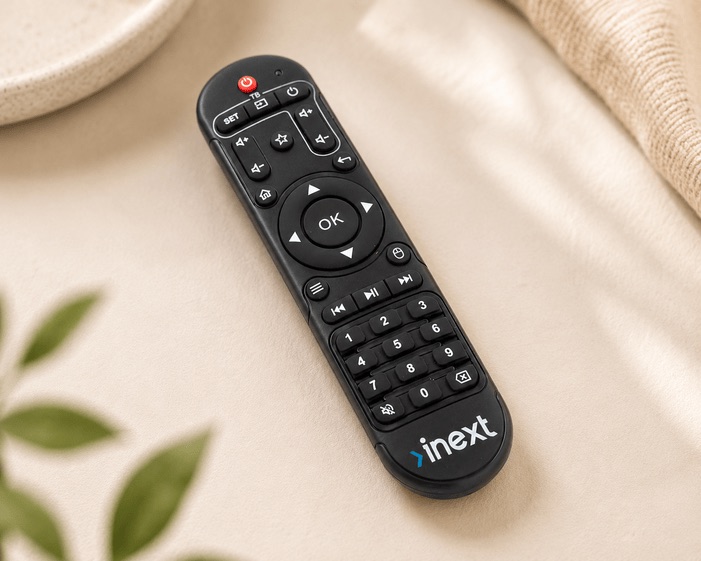

Simple IR control for everyday viewing.
The included IR remote keeps the living-room experience familiar: numeric keypad, navigation controls, playback buttons and direct access patterns that fit IPTV subscribers.
- Full numeric keypad for channel-based services
- Dedicated navigation and playback controls
- Dedicated IR extender port on supported TV6 variants; variants with an AV port do not support the extender
A built-in Bluetooth module lets you order TV6 with any remote in our lineup — IR or Bluetooth. In some regions it ships with a Bluetooth remote by default.
Browse remote optionsManaged by Alcatraz™ DMS
Every TV6 can be provisioned, monitored and updated through the inext Alcatraz device management system used by operator networks worldwide.
Complete specifications
Hardware
- Chipset
- Allwinner H618
- CPU
- Quad-Core ARM Cortex-A53
- GPU
- ARM Mali-G31 MP2
- RAM
- 2 GB DDR3
- Storage
- 16 GB eMMC
- Dimensions
- 103 × 103 × 20 mm
- Power supply
- 5 V / 2 A
Connectivity
- HDMI
- HDMI 2.0a (cable included)
- Ethernet
- RJ45 Fast Ethernet (100 Mbps)
- Wi-Fi
- Dual-band 2.4 / 5 GHz · 802.11 b/g/n/ac
- Bluetooth
- Bluetooth 5.0
- USB
- 2 × USB 2.0 Host
- Card reader
- microSD / TF
- Audio output
- S/PDIF optical
- 3.5 mm port
- Varies by market: dedicated IR extender or AV; AV variants are not compatible with the IR extender
Media
- Max resolution
- 4K UHD (2160p) @ 60 FPS
- Video codecs
- H.265 (4K@60) · VP9 P2 (4K@30) · H.264 (4K@30) · MPEG-1/2/4 · AVS · WMV9 · VP8 · Xvid/DivX
- Video formats
- AVI · MKV · ISO · VOB · DAT · MPG/MPEG · MP4 · MOV · TS · XVID · ASF · FLV · WMV
- Audio formats
- MP3 · WMA · AAC · WAV · OGG · MIDI · FLAC · APE · ALAC · M4A
- Image formats
- JPG/JPEG · HD JPEG · TIFF · PNG · BMP · GIF
- 3D support
- Side-by-side · Frame-packed
Software
- Operating system
- Android 12 (AOSP)
- Device management
- inext Alcatraz™ DMS
- TR-069
- Supported
- File systems
- exFAT · FAT32 · NTFS · EXT · HFS+
- Languages
- Multi-language
- Internet features
- IPTV · OTT · VOD · HLS · Internet Radio · HTML5 · WebKit · Android Apps
In the box
- ·
- IR remote control
- ·
- Power adapter (5V / 2A)
- ·
- HDMI cable
- ·
- Batteries
- ·
- Quick start guide
Package contents may vary by market, shipment and operator configuration.
