Standard · Android 10 STB
A proven Android TV box for stable operator rollouts.
TV5 Ultra pairs the reliable Allwinner H313 platform with 2 GB RAM, 16 GB storage, practical connectivity and inext Alcatraz™ DMS support.
Compare all models
- 4K @ 60 Hz
- H.265 playback
- Android 10
- AOSP, app-ready
- 2 GB / 16 GB
- DDR3 + eMMC
- IR Remote
- Simple control
inext TV5 Ultra
TV5 Ultra is built for operators who need a stable Android 10 set-top box with enough memory for everyday IPTV, OTT and launcher workflows.
It keeps the deployment practical: proven hardware, familiar IR control, broad media support and remote management through Alcatraz™ DMS.
Performance
Proven 4K, with room to spare.
Allwinner H313 with Mali-G31 MP2 gives TV5 Ultra reliable 4K@60 H.265 playback for IPTV, OTT and launcher workflows, with 2 GB RAM and 16 GB eMMC for everyday operator deployments.

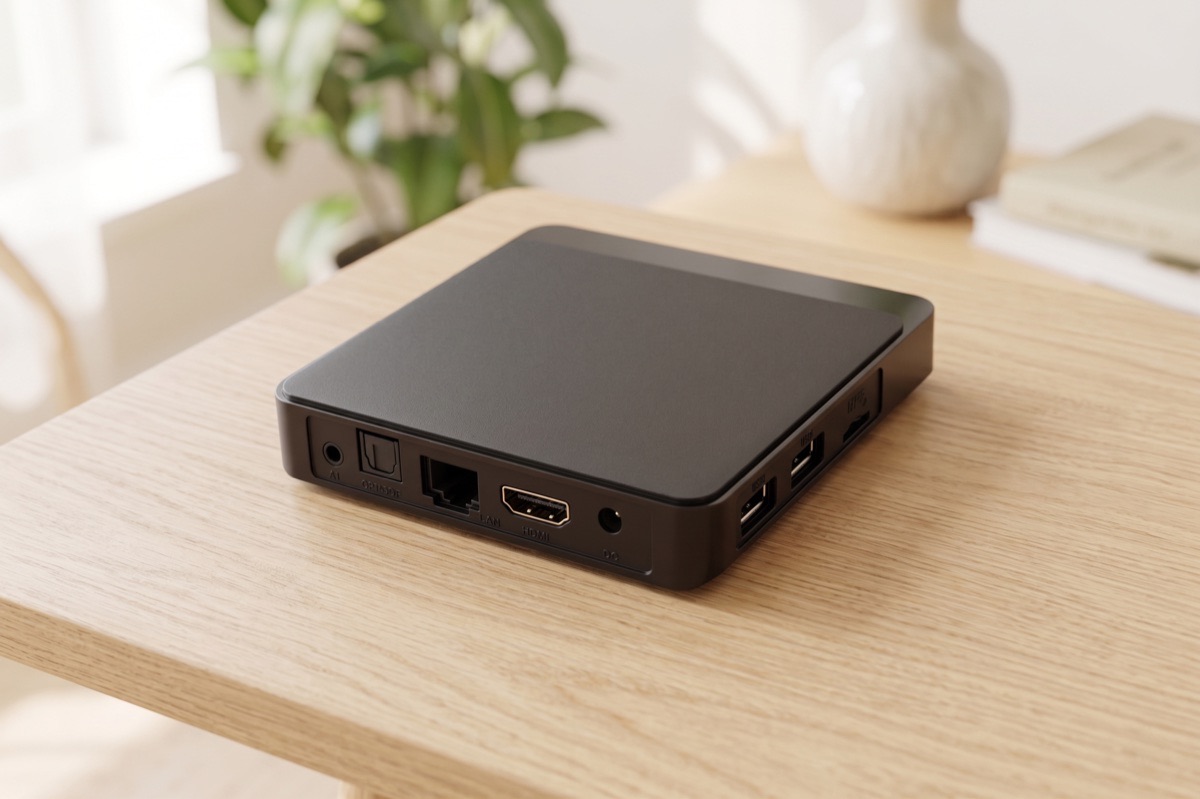

Connectivity
All the I/O your install needs.
- HDMI 2.0a
- 100 Mb Ethernet
- 2× USB 2.0
- microSD
- S/PDIF optical
- RCA AV output
- dual-band Wi-Fi 2.4/5 GHz
Software
Android 10, tuned for operator apps.
Android 10 AOSP gives operators a familiar app platform, custom launcher options and remote fleet workflows through Alcatraz™ DMS and TR-069.
Operator launcher
Shape the home screen around Live TV, VOD, catch-up, radio, apps, settings and your preferred subscriber flows.
Brand and market fit
Adapt logos, colors, language, default sections and preloaded services for each operator or regional deployment.
Remote fleet control
Use Alcatraz™ DMS and TR-069 to provision devices, push updates, manage settings and keep support work off the subscriber’s screen.
Remote
Classic IR remote in every box.
TV5 Ultra ships with the same dependable IR remote: full numeric keypad, navigation pad and direct playback buttons, ready to pair out of the box.
- Full numeric keypad for channel-based IPTV services
- Dedicated navigation and playback controls
- IR control for simple subscriber setup
Ships with a classic IR remote, but it can be spec'd with any IR remote in our lineup — including programmable models that control the set-top box and the TV together.
Browse remote optionsManaged by Alcatraz™ DMS
TV5 Ultra can be provisioned, monitored and updated through the same Alcatraz device management workflows used across the inext lineup.
Complete specifications
Hardware
- Chipset
- Allwinner H313
- CPU
- ARM v8 Cortex-A53 Quad-Core
- GPU
- ARM Mali-G31 MP2
- RAM
- 2 GB DDR3
- Storage
- 16 GB eMMC
- Dimensions
- 10.5 × 10.5 × 2.0 cm
- Power supply
- 5 V / 2 A
Connectivity
- HDMI
- HDMI 2.0a (cable included)
- Ethernet
- RJ45 Fast Ethernet (100 Mbps)
- Wi-Fi
- Dual-band 2.4 / 5 GHz · 802.11 b/g/n
- USB
- 2 × USB 2.0 Host
- Card reader
- microSD / TF
- Audio output
- S/PDIF optical · RCA via 3.5 mm TRS
Media
- Max resolution
- 4K UHD (2160p) @ 60 FPS
- Video codecs
- H.265 (4K@60) · VP9 P2 (4K@30) · H.264 (4K@30) · MPEG-1/2/4 · AVS · WMV9 · VP8 · Xvid/DivX
- Video formats
- AVI · MKV · ISO · VOB · DAT · MPG/MPEG · MP4 · MOV · TS · XVID · ASF · FLV · WMV
- Audio formats
- MP3 · WMA · AAC · WAV · OGG · MIDI · FLAC · APE · ALAC · M4A
- Image formats
- JPG/JPEG · HD JPEG · TIFF · PNG · BMP · GIF
- 3D support
- Side-by-side · Frame-packed
Software
- Operating system
- Android 10 (AOSP)
- Device management
- inext Alcatraz™ DMS
- TR-069
- Supported
- File systems
- exFAT · FAT32 · NTFS · EXT · HFS+
- Languages
- Multi-language
- Internet features
- IPTV · OTT · VOD · HLS · Internet Radio · HTML5 · WebKit · Android Apps
In the box
- ·
- IR remote control
- ·
- Power adapter (5V / 2A)
- ·
- HDMI cable
- ·
- Batteries
- ·
- Quick start guide
Package contents may vary by market, shipment and operator configuration.
Order TV5 Ultra for your network
A practical Android 10 STB option with 2 GB RAM, 16 GB storage, branded packaging and Alcatraz™ provisioning.
