Essential · Android 10 STB
Cost-effective Android TV for essential IPTV deployments.
TV5 keeps the inext operator stack accessible with Android 10, H313 4K playback, 1 GB RAM, 8 GB storage and Alcatraz™ DMS support.
Compare all models
- 4K @ 60 Hz
- H.265 playback
- Android 10
- AOSP, app-ready
- 1 GB / 8 GB
- DDR3 + eMMC
- IR Remote
- Simple control
inext TV5
TV5 is the entry point into the inext operator lineup: compact hardware, Android 10 AOSP and the essential connectivity needed for managed IPTV and OTT services.
It is designed for rollouts where low device cost, predictable playback and fleet control matter most.
Connectivity
Every essential port, built in.

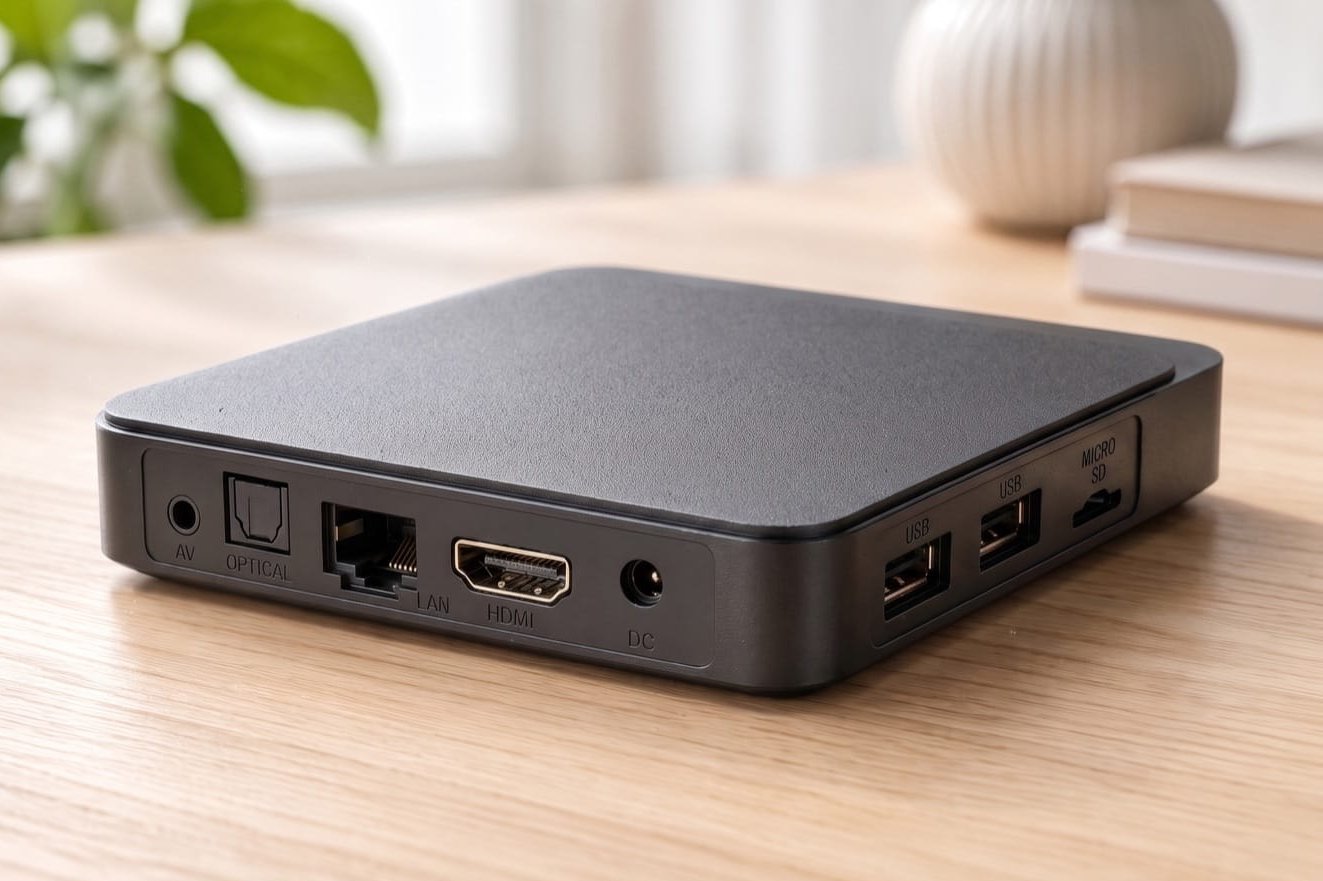

- HDMI 2.0a
- 100 Mb Ethernet
- 2× USB 2.0
- microSD
- S/PDIF optical
- RCA AV output
- dual-band Wi-Fi 2.4/5 GHz
Performance
Dependable 4K on a lean budget.

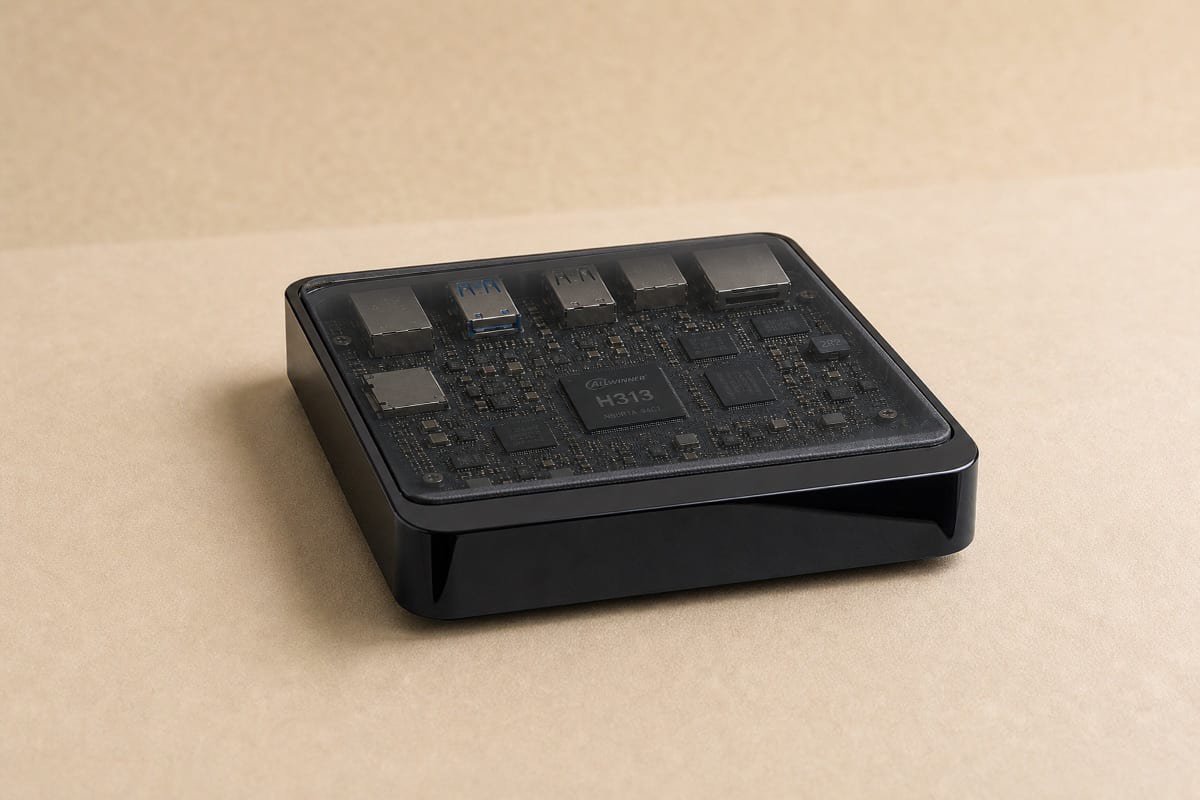

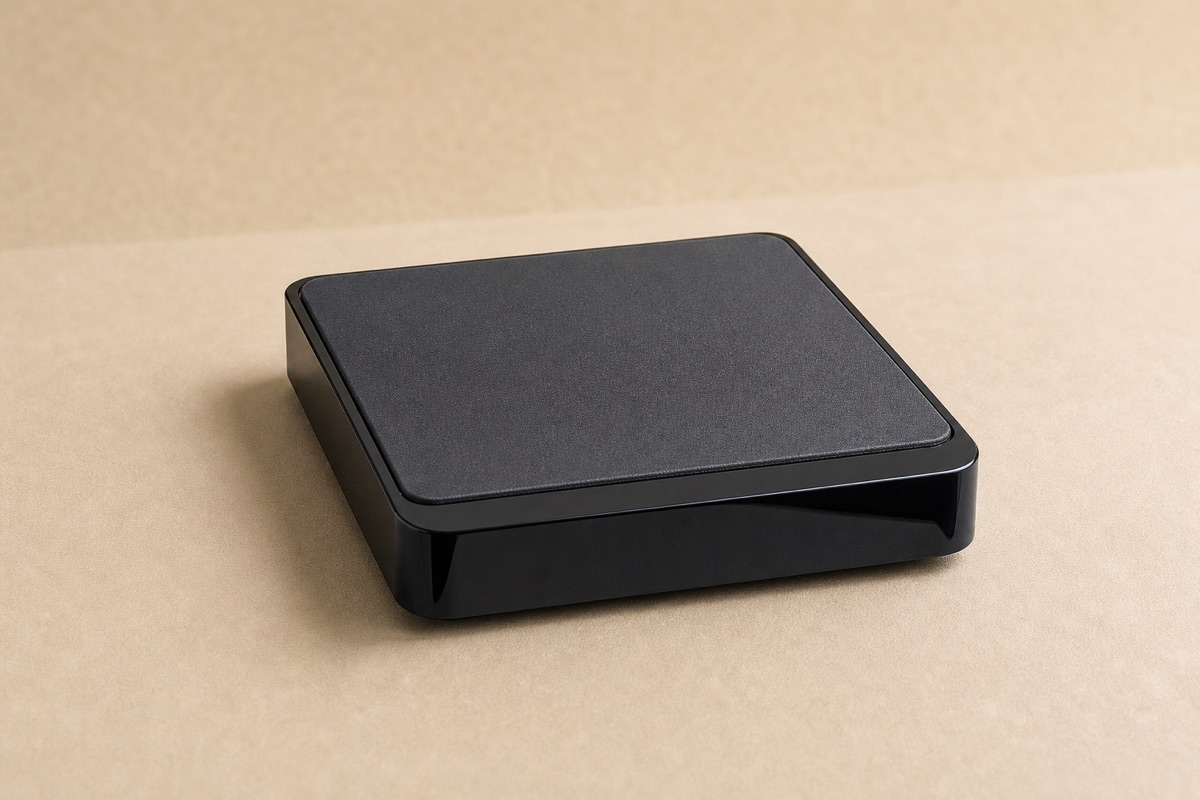

Allwinner H313 with Mali-G31 MP2 gives TV5 reliable 4K@60 H.265 playback for essential IPTV and OTT services, with 1 GB RAM and 8 GB eMMC for cost-sensitive operator rollouts.
Remote
A familiar remote, included.

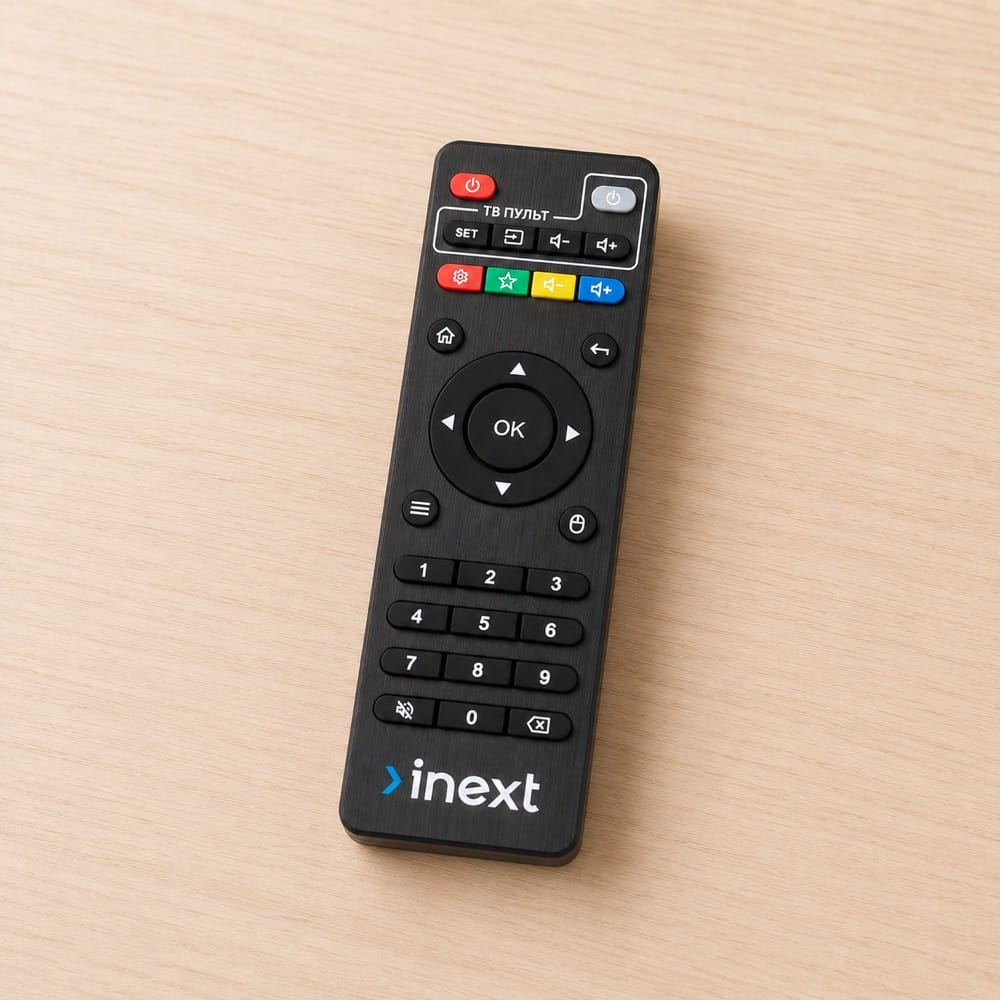

TV5 comes with a classic IR remote — numeric keypad, D-pad navigation and playback keys — so first-time setup feels instantly familiar.
- Numeric keypad for channel-based navigation
- Dedicated playback and menu controls
- Simple IR setup for subscriber homes
Ships with a classic IR remote, but it can be spec'd with any IR remote in our lineup — including programmable models that control the set-top box and the TV together.
Browse remote options
Software
Android 10 for essential service delivery.
TV5 supports operator launchers, IPTV and OTT apps, localization and remote fleet control through Alcatraz™ DMS and TR-069.
Operator launcher
Shape the home screen around Live TV, VOD, catch-up, radio, apps, settings and your preferred subscriber flows.
Brand and market fit
Adapt logos, colors, language, default sections and preloaded services for each operator or regional deployment.
Managed by Alcatraz™ DMS
TV5 can be provisioned, monitored and updated through Alcatraz™ DMS, keeping low-cost deployments manageable at scale.
Complete specifications
Hardware
- Chipset
- Allwinner H313
- CPU
- ARM v8 Cortex-A53 Quad-Core
- GPU
- ARM Mali-G31 MP2
- RAM
- 1 GB DDR3
- Storage
- 8 GB eMMC
- Dimensions
- 10.5 × 10.5 × 2.0 cm
- Power supply
- 5 V / 2 A
Connectivity
- HDMI
- HDMI 2.0a (cable included)
- Ethernet
- RJ45 Fast Ethernet (100 Mbps)
- Wi-Fi
- Dual-band 2.4 / 5 GHz · 802.11 b/g/n
- USB
- 2 × USB 2.0 Host
- Card reader
- microSD / TF
- Audio output
- S/PDIF optical · RCA via 3.5 mm TRS
Media
- Max resolution
- 4K UHD (2160p) @ 60 FPS
- Video codecs
- H.265 (4K@60) · VP9 P2 (4K@30) · H.264 (4K@30) · MPEG-1/2/4 · AVS · WMV9 · VP8 · Xvid/DivX
- Video formats
- AVI · MKV · ISO · VOB · DAT · MPG/MPEG · MP4 · MOV · TS · XVID · ASF · FLV · WMV
- Audio formats
- MP3 · WMA · AAC · WAV · OGG · MIDI · FLAC · APE · ALAC · M4A
- Image formats
- JPG/JPEG · HD JPEG · TIFF · PNG · BMP · GIF
- 3D support
- Side-by-side · Frame-packed
Software
- Operating system
- Android 10 (AOSP)
- Device management
- inext Alcatraz™ DMS
- TR-069
- Supported
- File systems
- exFAT · FAT32 · NTFS · EXT · HFS+
- Languages
- Multi-language
- Internet features
- IPTV · OTT · VOD · HLS · Internet Radio · HTML5 · WebKit · Android Apps
In the box
- ·
- IR remote control
- ·
- Power adapter (5V / 2A)
- ·
- HDMI cable
- ·
- Batteries
- ·
- Quick start guide
Package contents may vary by market, shipment and operator configuration.
Order TV5 for your network
A cost-effective Android STB package with branded packaging and Alcatraz™ provisioning for essential IPTV and OTT rollouts.
