Android 101/8 GB4K UHDWiFi 2.4/5GHz

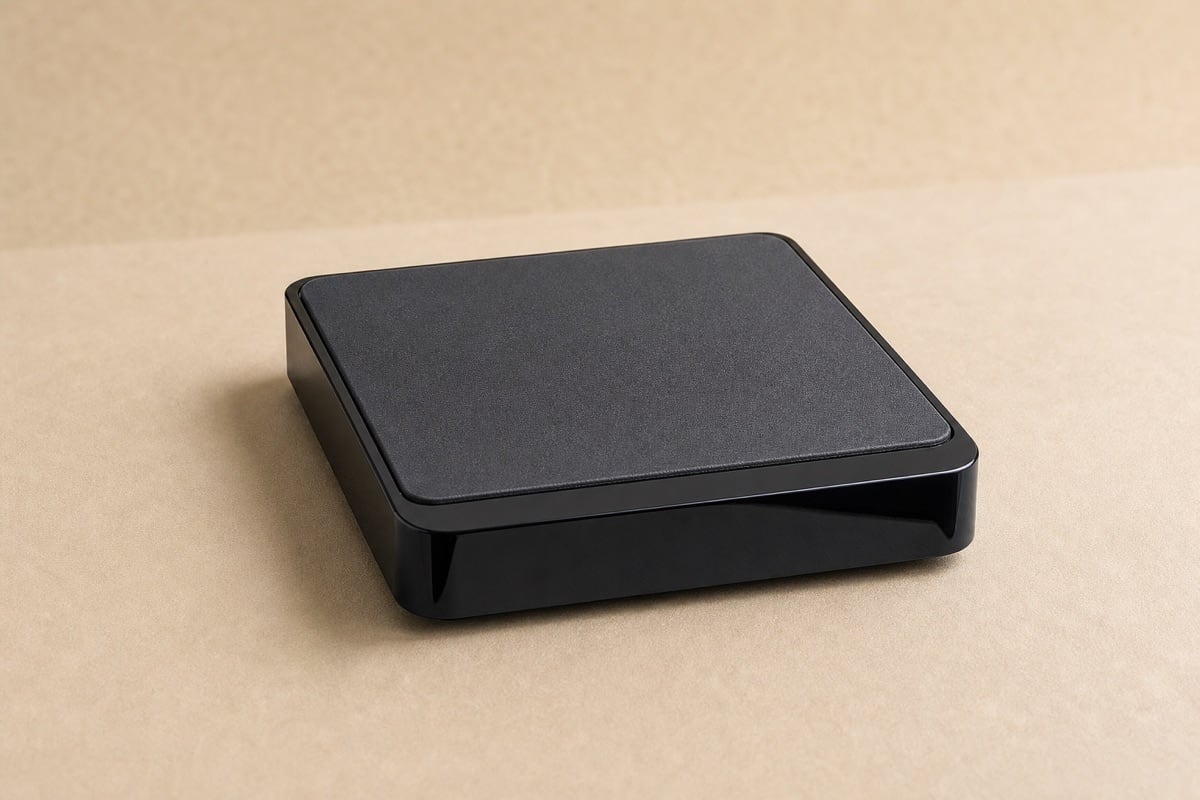

Медиаплеер inext TV5, общий вид

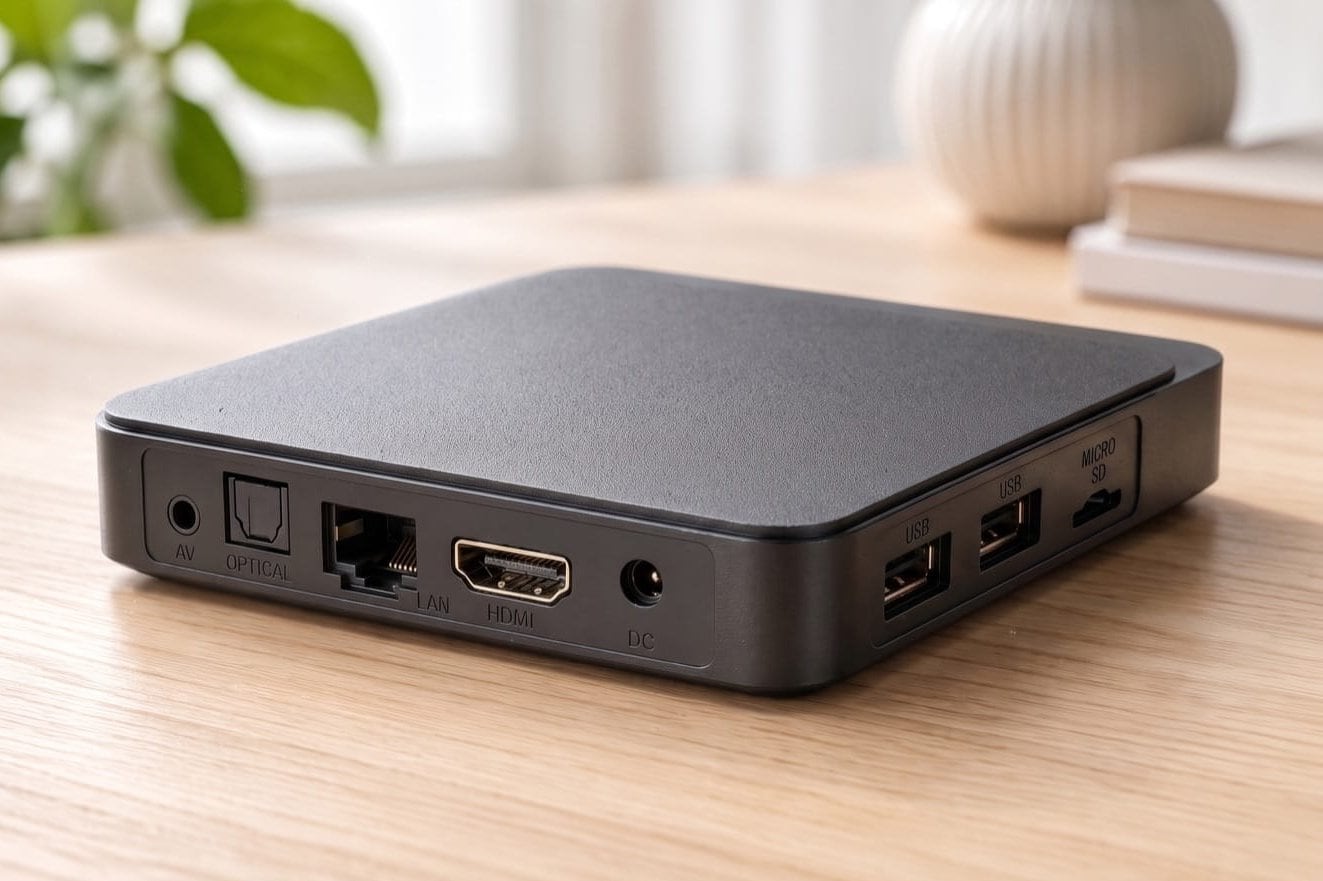

Медиаплеер inext TV5, порты подключения
Медиаплеер inext TV5, компактные размеры
Медиаплеер inext TV5, коробка черного цвета
Watch video
Click to enlarge
Catalog - Android TV Box - inext TV5, Android 10, 1 GB DDR3, 8 GB eMMC, Allwinner H313

Set-top box inext TV5

inext TV5 – TV box on Android 10 platform, supports 4K resolution and H.264, H.265 codecs.

Connects to any TV with RCA1 or HDMI input, and to the Internet via Wi-Fi or Ethernet.

Operating system: Android 10
Chipset: Allwinner H313 ARM v8 Cortex A53 (Quad-Core up to 1.6GHz)
Video: 4K UHD (2160p) – H.265 (60fps), H.264 (30fps)
Connection: HDMI v2.0a, 2xUSB 2.0, microSD/TF card-reader, S/PDIF, Ethernet 100Mbps, 2.4/5 GHz Wi-Fi b/g/n (IEEE 802.11n)

Accessories: remote control, batteries, power adapter, HDMI cable, user manual.

i-tv5

Small box - great possibilities for the TV

The inext TV5 set-top box makes a SmartTV out of an ordinary TV. Opens access to an incredible amount of content - many popular video services, Internet TV, photos, your favorite music.

Ultra High Definition 4K

Realistic and natural images with excellent detail 4K UHD - 3840 × 2160 px resolution up to 60 frames per second.

*Requires TV and video content with support 4K.

Functionality

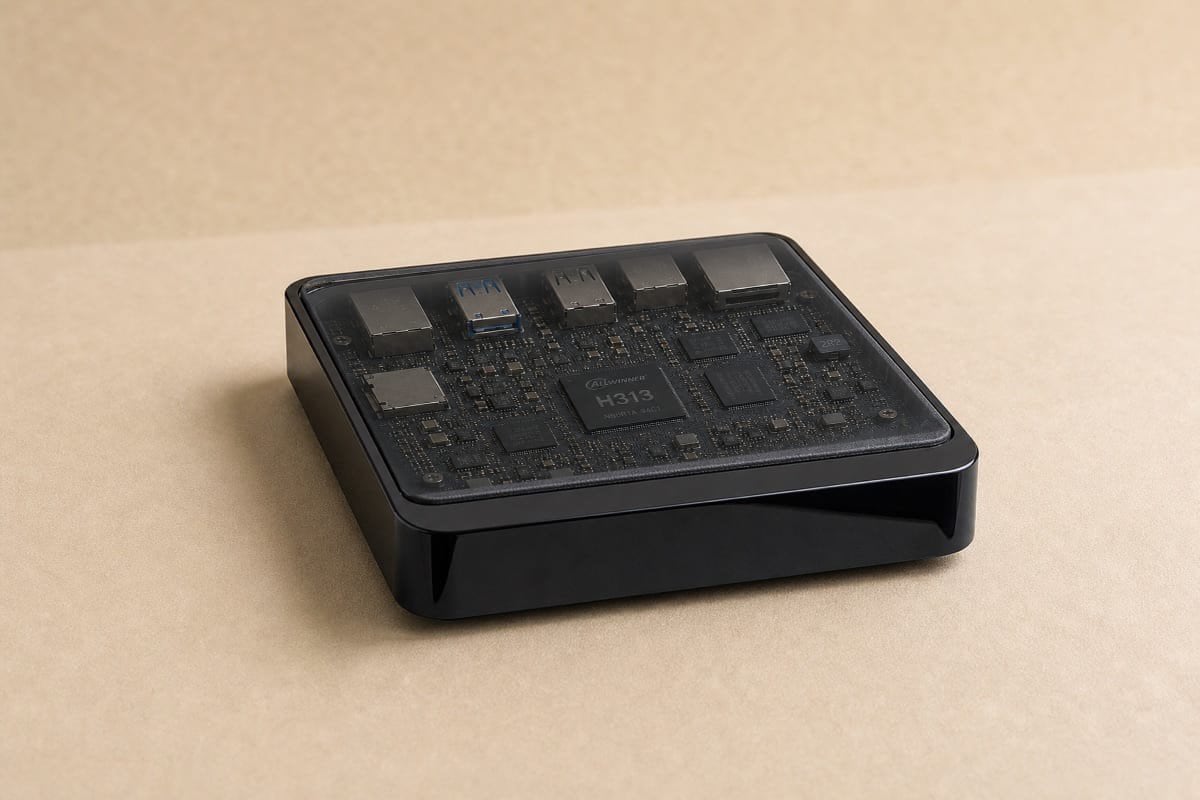

The TV5 media player is based on the Android 10 operating system and the Allwinner H313 chipset, which is 146% more efficient than the previous generation.
Android 10

AOSP

CPU

Allwinner H313

RAM

1 Gb DDR3

FLASH

8 Gb eMMC

Wi-Fi

2.4 GHz і 5 GHz

CPU

ARM v8 Cortex-A53 1.6 GHz

Chipset

Allwinner H313

AV 3.5 mm

S/PDIF

Ethernet

LAN 100Mb/s

HDMI 2.0a

DC 5V, 2A

USB 2.0

USB 2.0

Card reader

microSD і TF

Easy to connect

Supports connection to the Internet via Wi-Fi and LAN, and to a TV via HDMI or AV/RCA cable. Supplied with HDMI cable free of charge.
WI-FI 2.4GHz/5GHz

The dual-band Wi-Fi module provides high speed data transfer.

HDMI 2.0a

Up to 18 Gbps bandwidth allows you to enjoy high quality video and audio.

USB, microSD/TF

Two USB 2.0 ports and a microSD and TF card reader.

S/PDIF

Optical interface for multi-channel digital audio transmission.

1. Connect inext TV5 to TV.

2. Connect to the Internet.

3. Enjoy watching.

Comfortable in using

Controlling the media player is easy and intuitive using the programmable remote control or the Android TV Remote Control app.
How to control inext TV5 from a smartphone?

This video shows how to operate the inext using a phone or tablet.

How to program the remote control of the inext TV5?

This video shows how to program the inext remote control to control two devices, a TV and a set-top box, at the same time.

inext TV5 specification

Chipset:
Allwinner H313, ARM v8 Cortex-A53, Quad-Core up to 1.6 GHz
GPU:
ARM Mali-G31 MP2
Built-in memory:
8 GB eMMC
Operational memory:
1 GB DDR3
Operating system:
Android 10 (AOSP)
Wi-Fi:
Dual band 2.4/5 GHz Wi-Fi b/g/n (IEEE 802.11n)
Ethernet (RJ45):
LAN 100Mb/s
Audio Format Support:
MP3, WMA, AAC, WAV, OGG, MIDI, FLAC, APE, ALAC, M4A
Video Format Support:
AVI, MKV, ISO, VOB, DAT, MPG/MPEG, MP4, MOV, TS, XVID, ASF, FLV, WMV
Codecs: H.265 Main10@L5.1 (4K@60FPS), VP9 Profile 2 (4K@30FPS), H.264 (4K@30FPS), HD MPEG1/2/4, HD AVS, WMV9, VP8, Xvid/DivX3/4/5/6, Divx HD, Divx Plus HD
Image Format Support:
JPG/JPEG, HD JPEG, TIFF, PNG, BMP, GIF
Ports:
HDMI V2.0a, USB 2.0x2, A/V 3.5 mm, S/PDIF
Power:
5V/2A
Card reader:
microSD/TF card reader
Dimensions:
W: 105 mm x D: 105 mm x H: 20 mm

1AV cable not included, purchased separately
